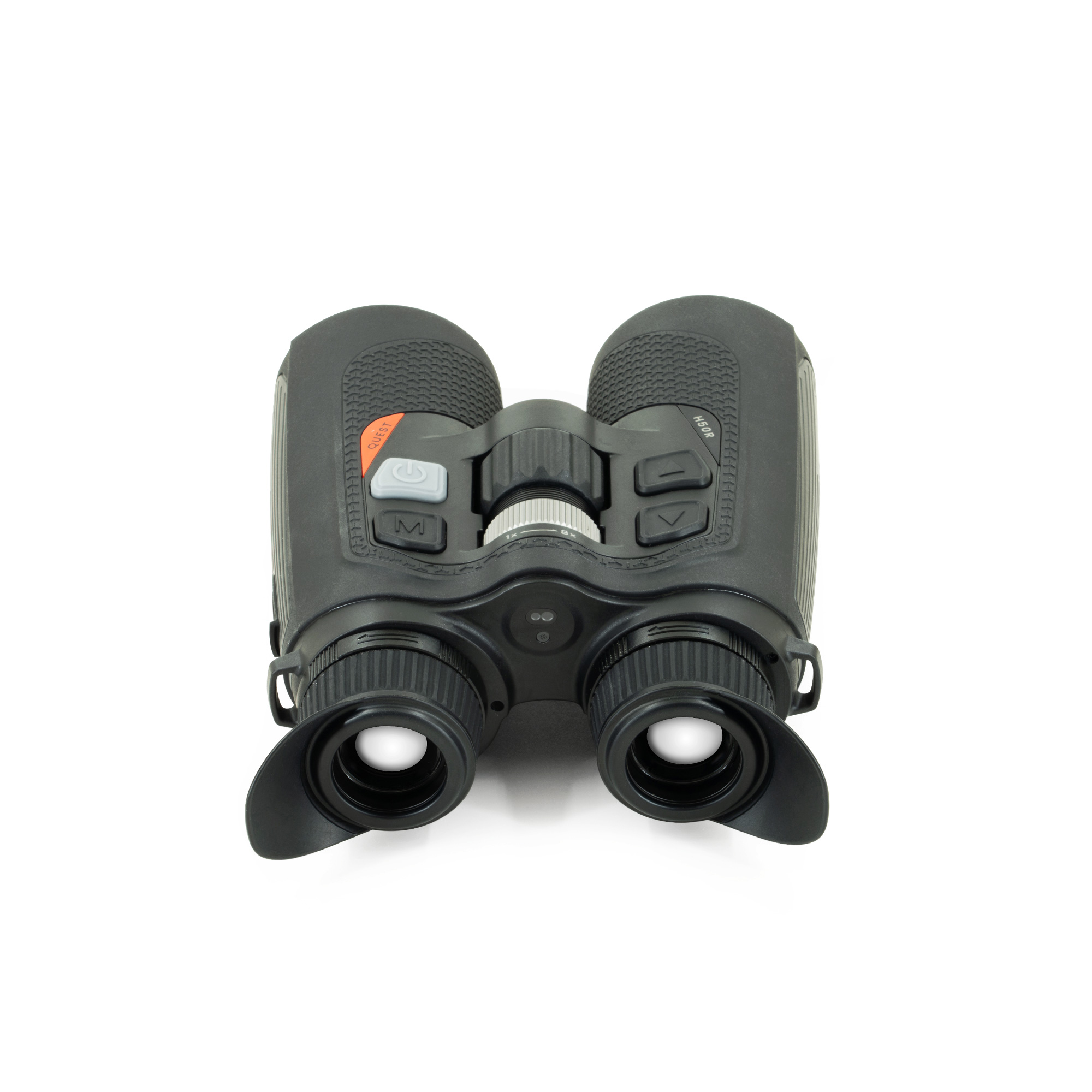

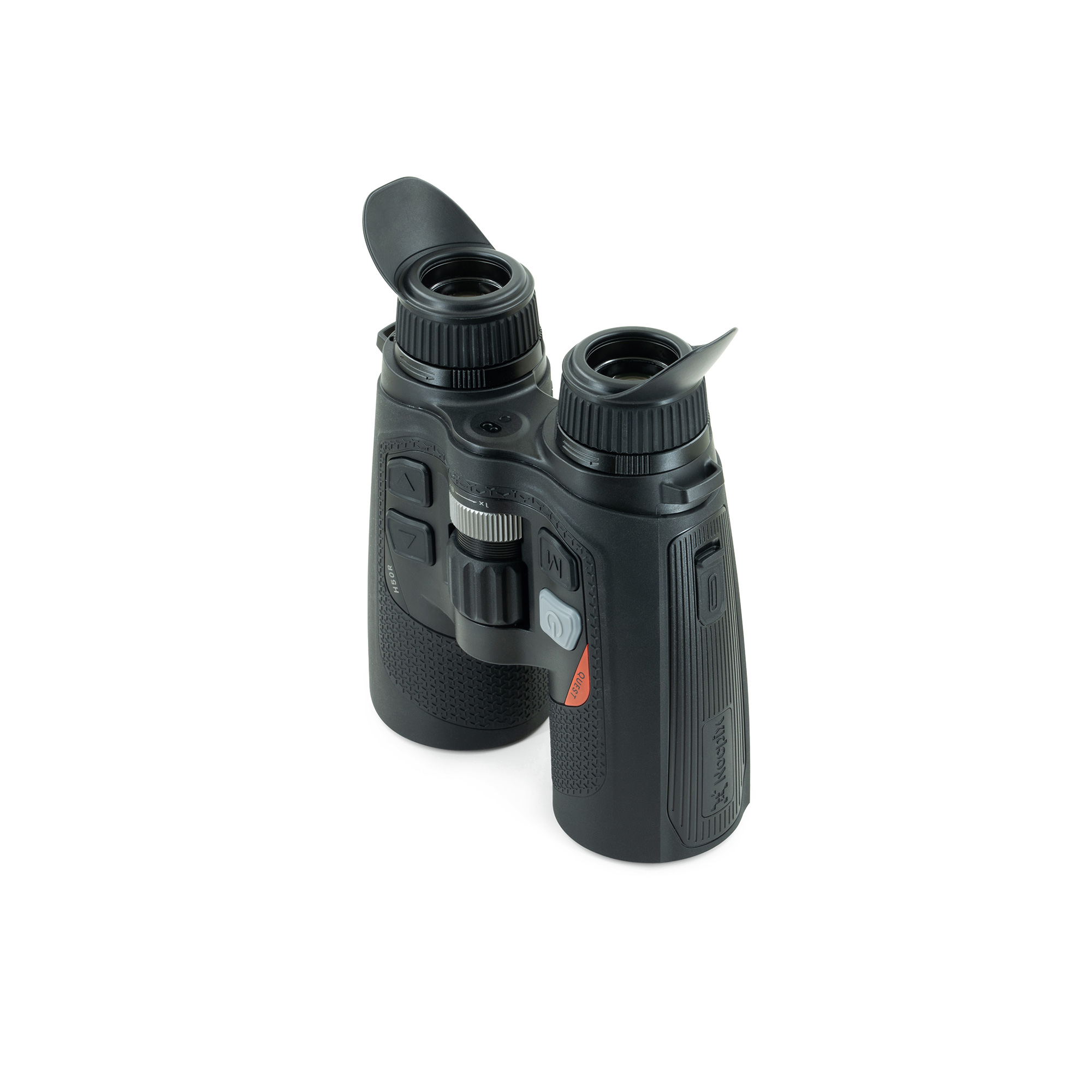

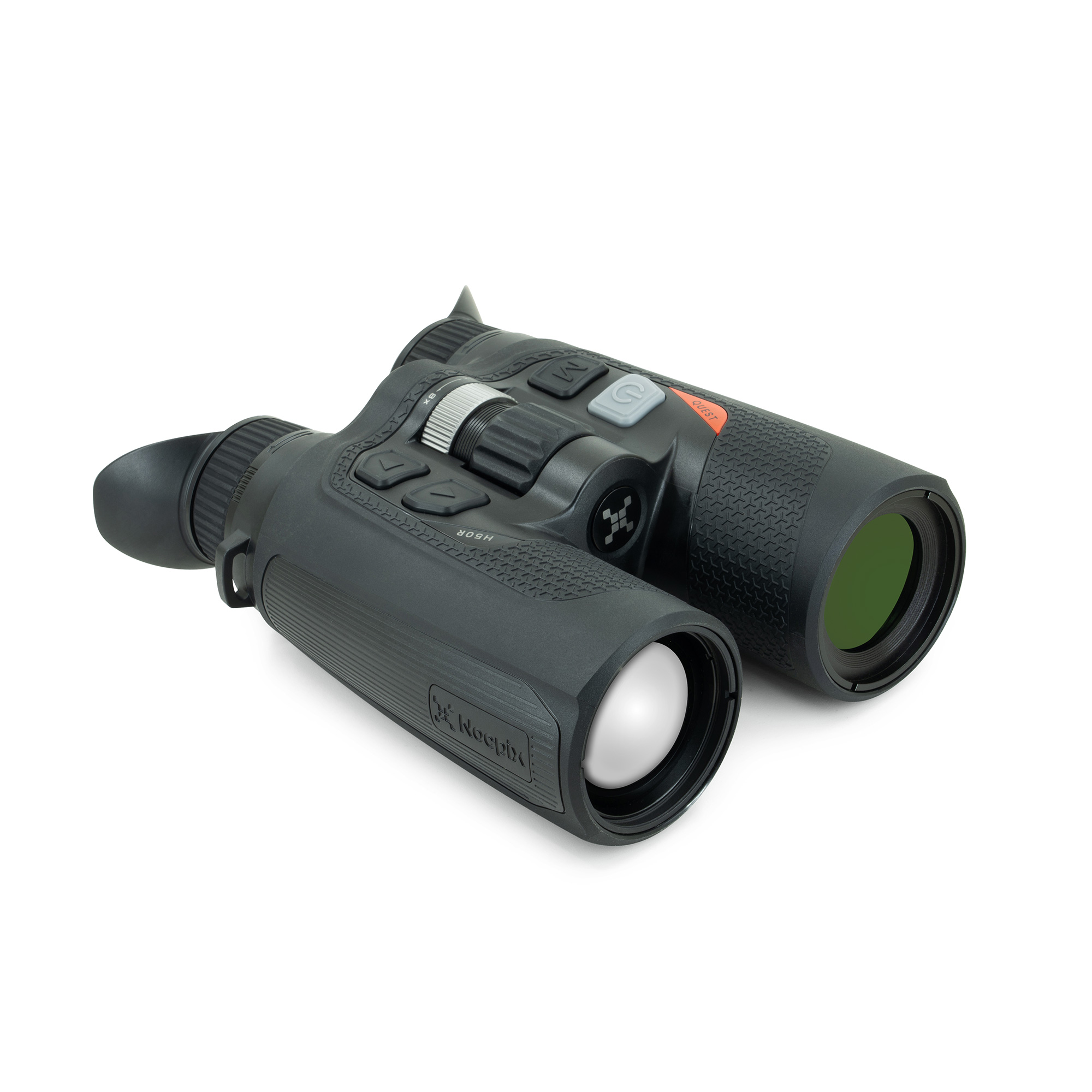

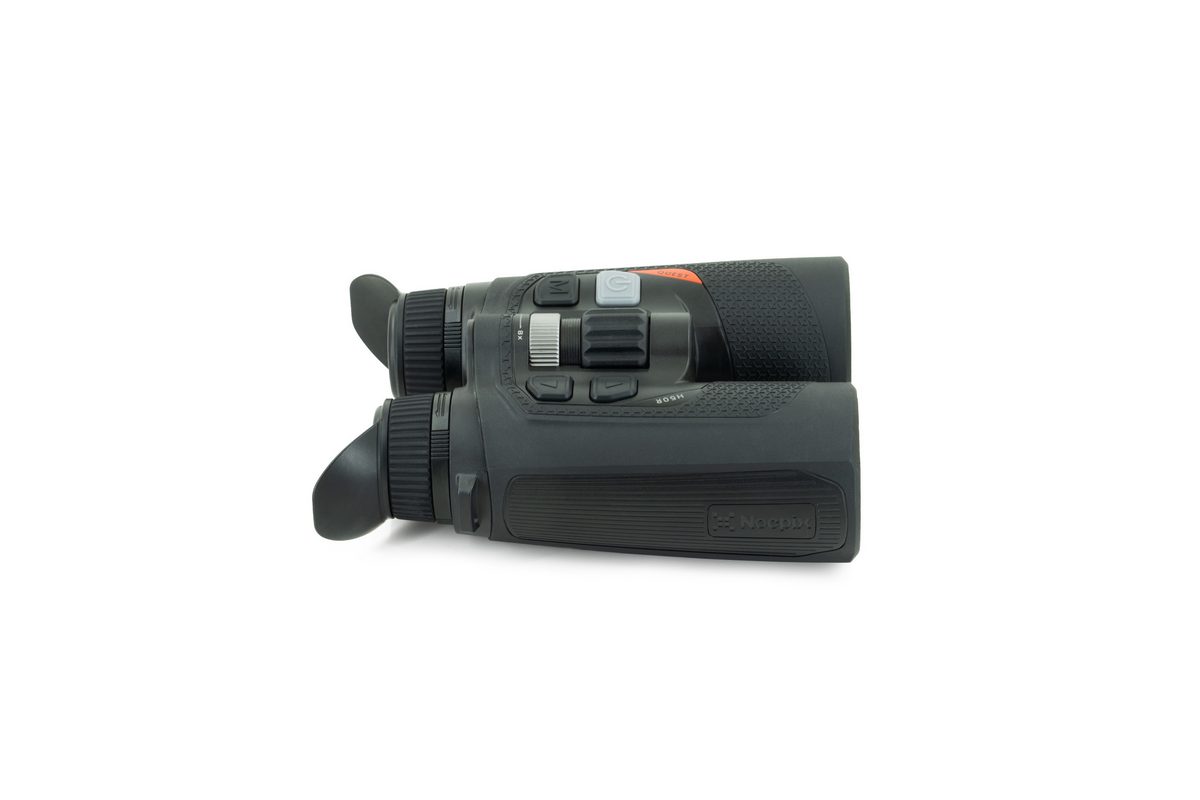

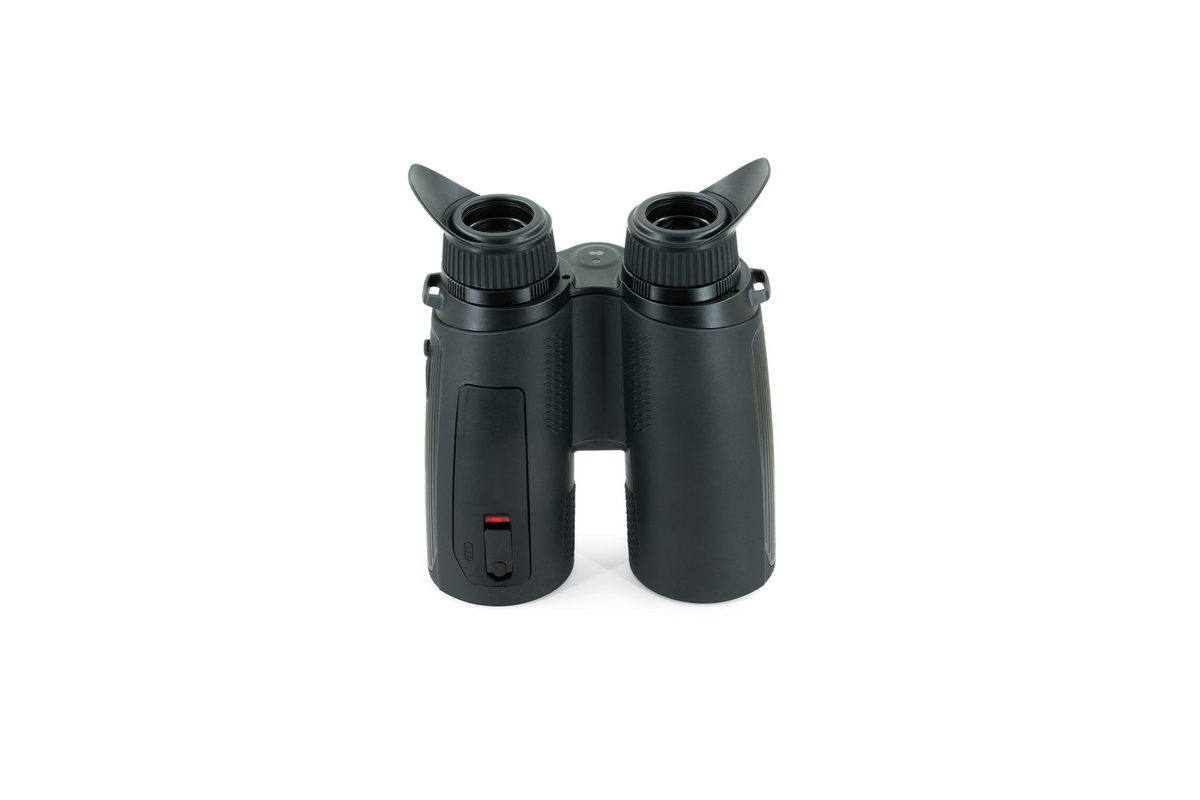

Nocpix Quest H50R 640x512 50 mm Rangefinding Thermal Binoculars.

Lightweight and portable, the QUEST offers a detection range of up to 2600m and an integrated Laser Range Finder with a range of 1000m for superior accuracy and visibility. Its traditional binocular design features a full rubber coating and an IP67 rating for durability and comfort in harsh conditions. Equipped with a powerful 640x512 sensor (NETD ≤15 mK, 60 Hz), the QUEST ensures exceptional image sharpness, superior thermal sensitivity and seamless performance in demanding environments.

Outstanding visual experience

The Nocpix QUEST H50R features R+ image enhancement for superior clarity and precision, paired with a 1920 x 1200 AMOLED display for an immersive, eye-pleasing viewing experience.

A superior sensor sets new standards

The Nocpix QUEST H50R is equipped with a high-performance sensor of 640 x 512 at 12 µm that delivers exceptional image sharpness. With a NETD ≤ 15 mK and a frame rate of 60 Hz, it ensures superior thermal sensitivity and delivers clear images even in the most demanding environments.

Powerful detection capabilities

QUEST has a detection range of up to 2840 yds and an integrated LRF with a range of up to 1090 yds, so you can see further and more accurately than ever before. It also supports ballistic calculations and provides data support for joint hunting.

Single-handed operation

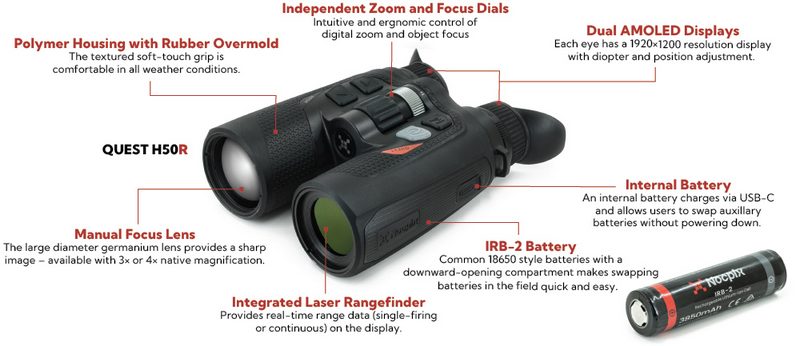

The Nocpix QUEST H50R offers ergonomic, non-slip handling with a simplified 4-button layout and centrally positioned scroll wheels for easy one-handed control and a secure grip in all conditions.

Eliminate power anxiety

The QUEST series features a dual-battery design with an integrated and replaceable 18650 battery that ensures seamless switching and uninterrupted use during your adventure.

The traditional binocular experience

The QUEST features a traditional binocular design with a refined full rubber coating and an IP67 rating for water and dust resistance, ensuring both durability and overall comfort.

Optics

Objective Focal Length: 50mm
Detection Range: 2850 Yards
Optical Magnification: 4x
Digital Magnification: 8x
Objective Lens Material: Germanium
Horizontal Angular Field of View: 8.8°
Vertical Angular Field of View: 7°
Objective Diameter: 50mm
Objective F#: 1.1
Focusing Mechanism: Manual Focus
Eye Relief: 25mm
Diopter Range: -5 to +5
Display Type: AMOLED
Display Resolution: 1920x1200

Sensor Specifications

Sensor Type: Nocpix 640
Device Technology: Thermal Imaging
Sensor Resolution: 640×512
Sensor Pixel Size: 12μm
Sensor Frame Rate: 60hz
Thermal Sensitivity: <15mk
Non-Uniformity Correction (NUC): Manual, Automatic, Semi-Automatic

Features & Performance

Color Palettes: White Hot, Black Hot, Red Hot, Color, Violet, Crimson, Viridian
Rangefinder: Integrated 1090 yd LRF
Stand-by Mode: Yes
Picture-in-Picture: Yes
Storage Capacity: 64GB
Connector Output: Power/Data
User-Updatable Firmware: Yes
Mobile App: Yes
Power Source: USB-C External, 18650 Battery, Built-In Battery Pack
Connector Type: USB-C
Wifi: Yes
Onboard Recording: Yes
Image Capture: Yes
Video Output: Yes
Run Time: 5+ hours
Warranty: 5 Years with 5 day turnaround time
Startup Time: <10 Seconds, Instant from Standby
External Power Source: USB-C

Physical

Length: 6.91"
Width: 5.43"
Height: 2.60"
Weight: 24.69 oz
Housing Material: Polymer

Environmental Specifications

Operating Temperature Range: -4°F~122°F
Ingress Protection: IP67
