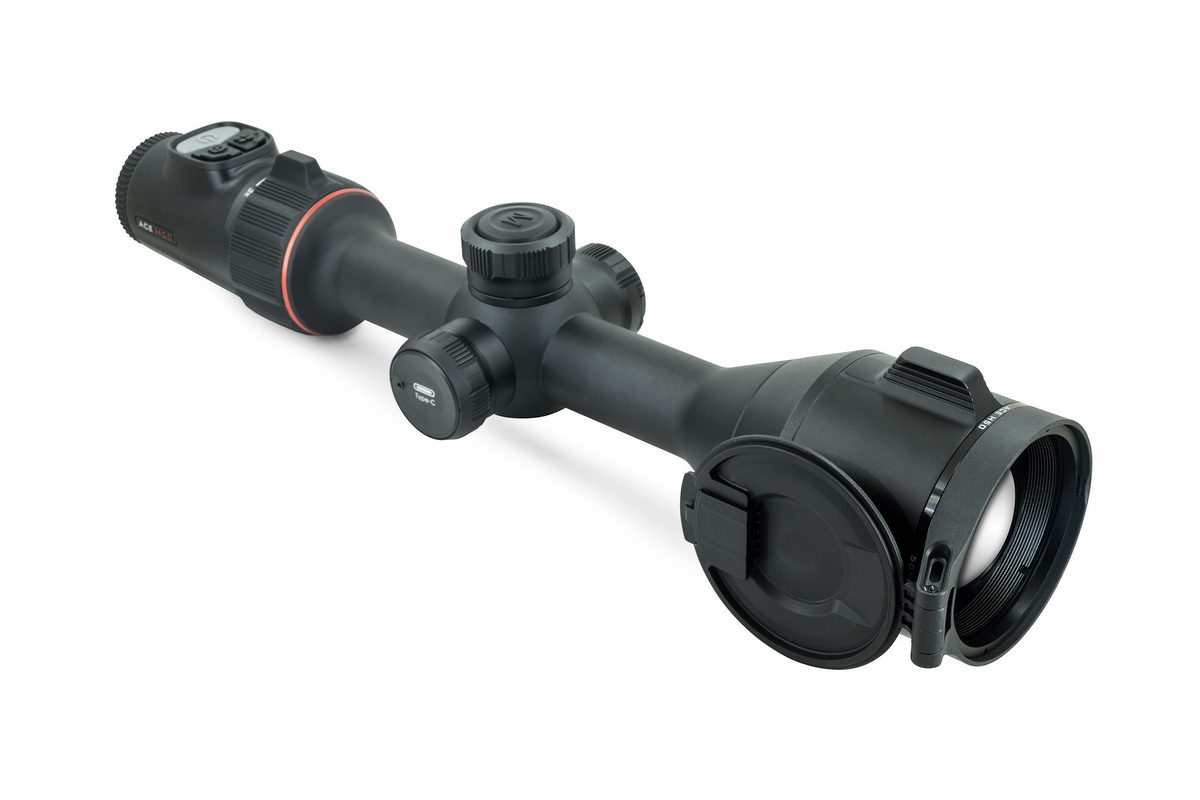

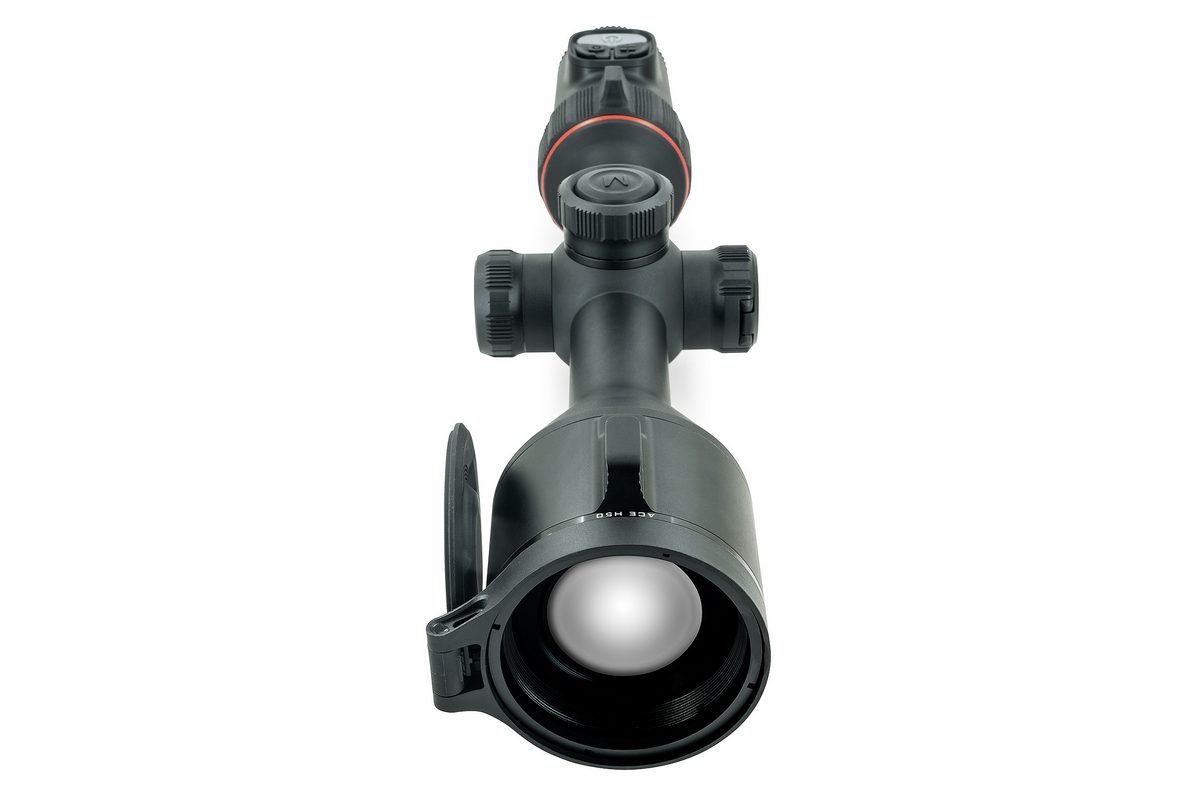

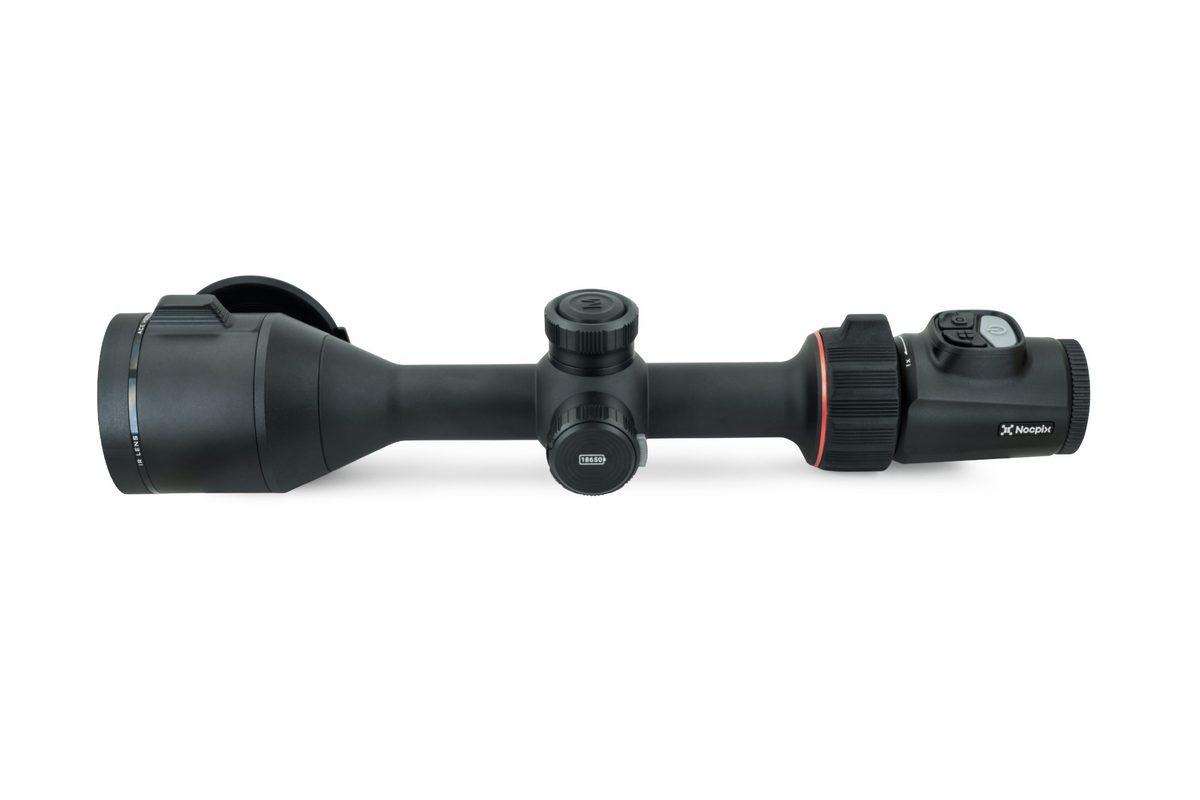

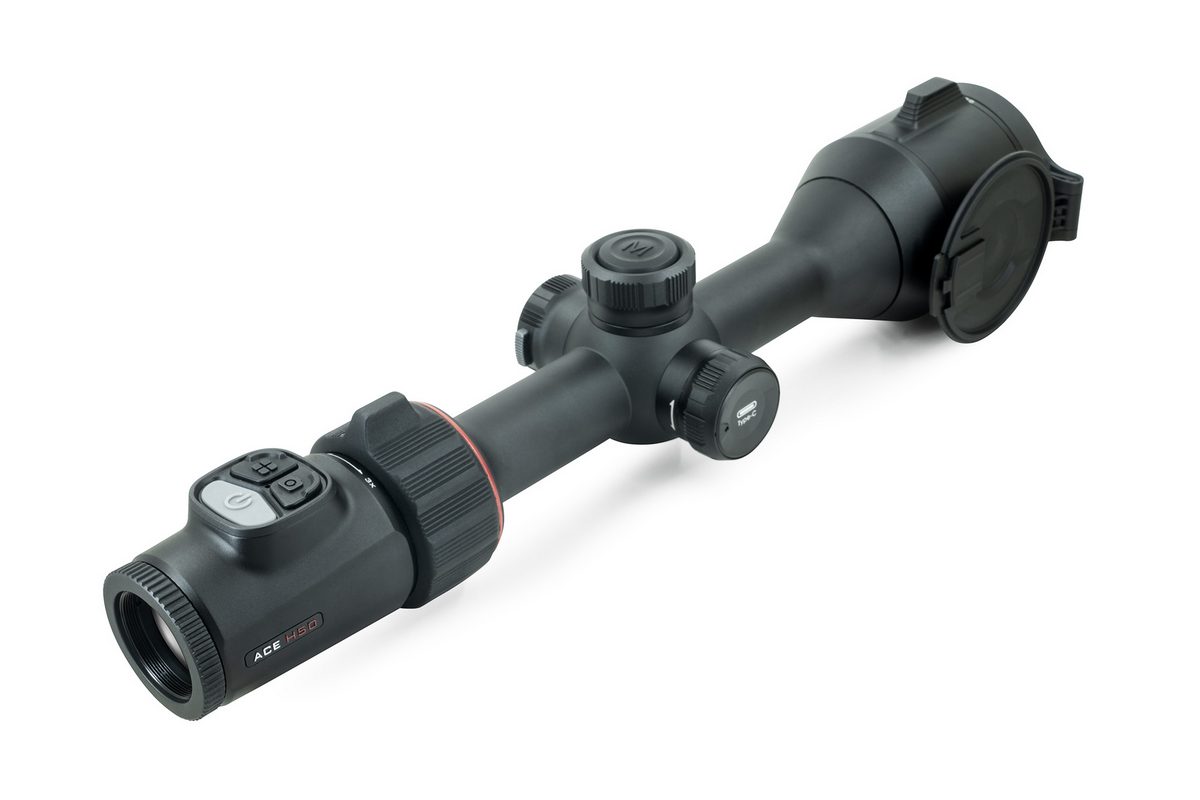

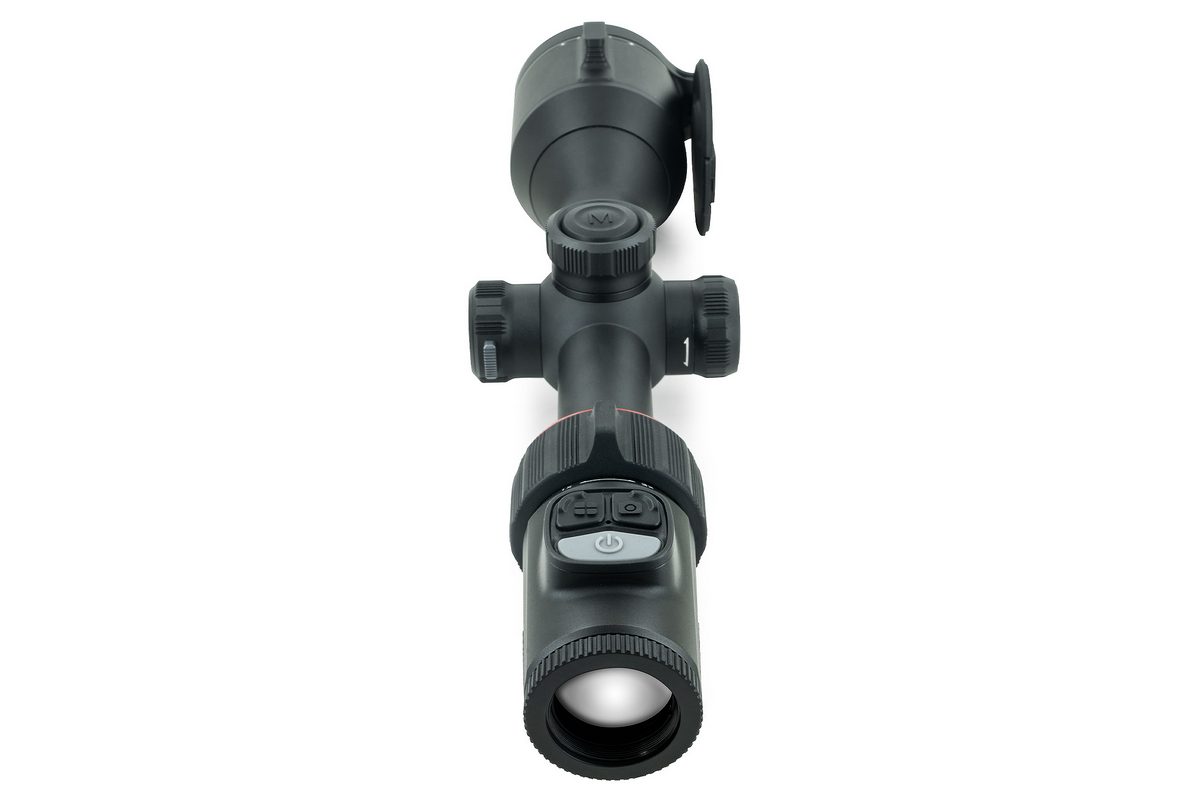

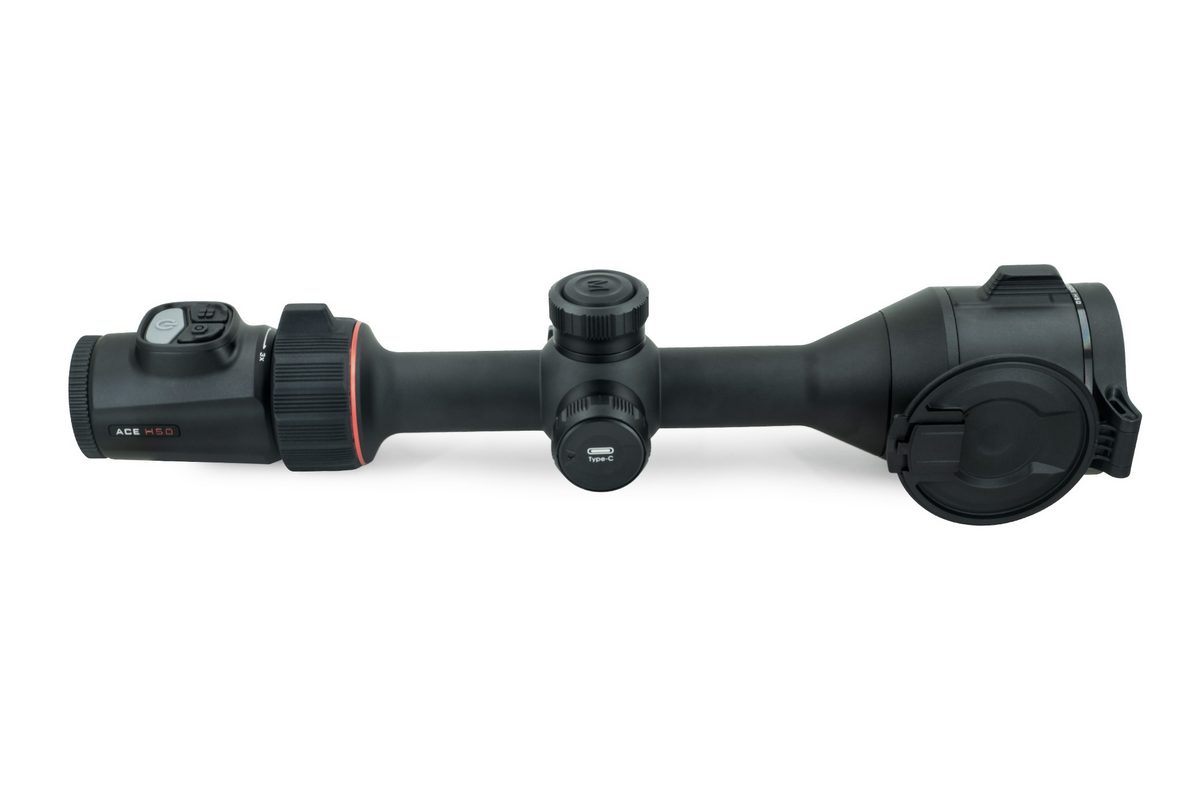

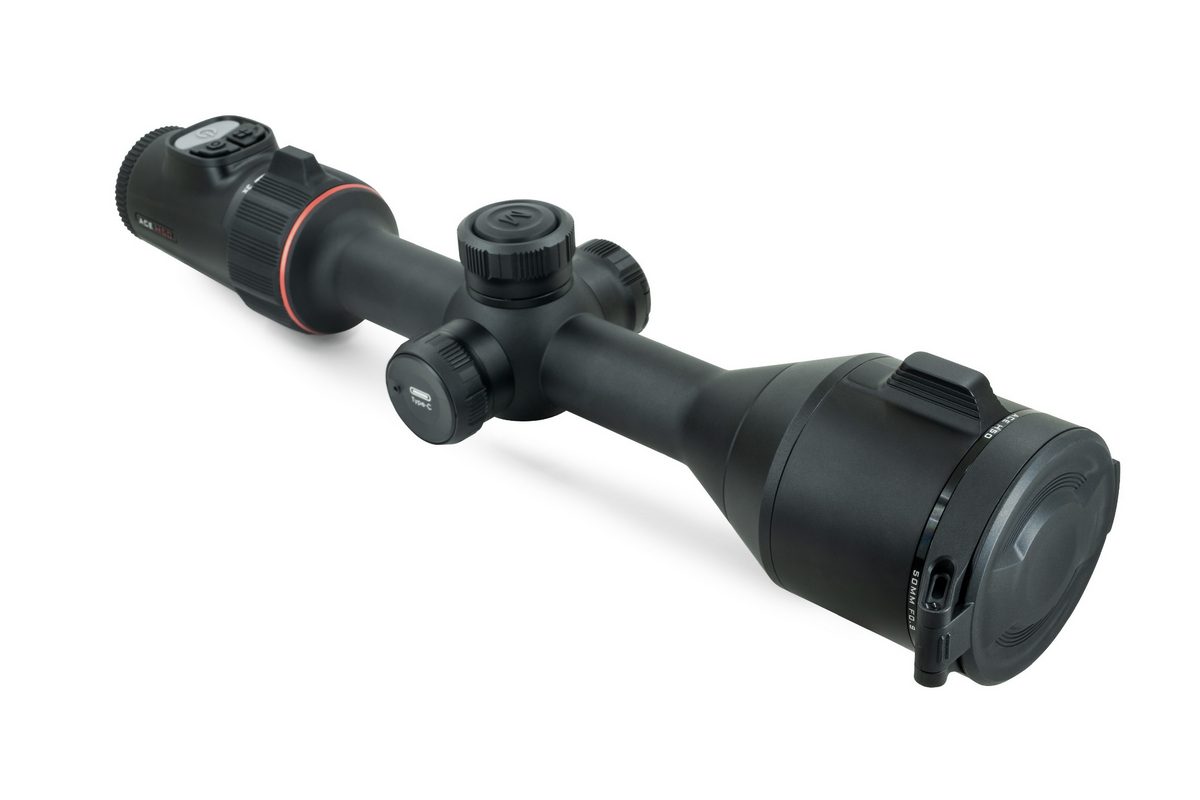

Nocpix ACE H50 3x 640x512 50 mm Thermal Weapon Sight with Ocular Magnifier.

The ACE is built around the idea of combining leading user-requested features in a streamlined optic that balances advanced capability with ease-of-use in the field. Designed to feel like a traditional day optic, the ACE is compatible with bolt action or semi-automatic rifles using standard 30 mm mounts and rings. The combination of an internal USB-C charging battery and a removable 18650 style rechargeable battery allows users to hot-swap batteries in the field to run indefinitely. A 1-3x ocular magnifier provides optical magnification of the 2560×2560 round AMOLED display inside the eyepiece. The Vision+ system pairs this high-resolution display with a 15 mK NETD sensor for an incredibly detailed and precise image.

Reality+ imaging enhancement

Nocpix's proprietary Reality+ image processing algorithm effectively eliminates ambient temperature noise, improving contrast and detail.

New Vision+ system

The new Vision+ system features a ROUND 1.03-inch AMOLED screen with 2560 x 2560 pixels and industry-leading eyepiece zoom for direct optical magnification. Unlike conventional e-zoom, it prevents blurring and distortion in close-up shots. Enjoy high-resolution images and a wider field of view for a comprehensive and comfortable viewing experience.

Dual battery system for increased capacity

The ACE series is equipped with a dual battery system that includes an integrated 4,000 mAh battery and an additional, replaceable 18650 battery. This system ensures a reliable power supply for longer hunting trips.

Standout Features

• A 1-3x optical ocular magnifier provides additional magnification of the display without any reticle shift or digital zoom.
• High-contrast round 2560×2560 AMOLED display provides increased clarity and detail.
• Simplified controls offer improved ergonomics and a better user experience in the field.
• The ACE series is equipped with a dual battery system that includes an integrated 4,000 mAh battery and an additional, replaceable 18650 battery. This system ensures a reliable power supply for longer hunting trips.
• Charge through the unit with a unique lock-out USB-C port design.

Optics

Display Type: AMOLED
Eye Relief: 50mm
Objective Focal Length: 50mm
Digital Magnification: 8x
Diopter Range: -5 to +5
Vertical Angular Field of View: 7°
Horizontal Angular Field of View: 8.8°
Focusing Mechanism: Manual Focus
Objective F#: 0.9
Objective Diameter: 50mm
Objective Lens Material: Germanium
Display Resolution: 2560×2560
Detection Range: 2850 Yards
Optical Magnification: 3x

Sensor

Sensor Type: Nocpix 640
Sensor Pixel Size: 12μm
Thermal Sensitivity: <15mk
Non-Uniformity Correction (NUC): Manual, Automatic, Semi-Automatic
Sensor Frame Rate: 60hz
Device Technology: Thermal Imaging
Sensor Resolution: 640×512

Features & Performance

Warranty: 5 Years with 5 day turnaround time
Startup Time: <10 Seconds, Instant from Standby
Color Palettes: White Hot, Black Hot, Red Hot, Color, Violet, Crimson, Viridian
Picture-in-Picture: Yes
Storage Capacity: 64GB
Connector Output: Power/Data
User-Updatable Firmware: Yes
Mobile App: Yes
Run Time: 7+ hours
Power Source: USB-C External, 18650 Battery, Built-In Battery Pack
One-Shot Zero: Yes
Stand-by Mode: Yes
Connector Type: USB-C
External Power Source: USB-C
Wifi: Yes
Onboard Recording: Yes
Image Capture: Yes
Video Output: Yes

Physical

Mounting Interface: Quick Detach Picatinny
Housing Material: Aluminum Alloy
Weight: 38.5 oz.
Height: 2.68"
Width: 3.54"
Length: 14.37"

Environmental Specifications

Operating Temperature Range: -4°F~122°F
Recoil Rating: 1000 g/s² (300 Win./7mm Mag)
Ingress Protection: IP67
